Home > Hydraulic Series
Economical type hydraulic double station heat press machine ZD-7B-2(Elevated bottom plate) Economical type hydraulic double station heat press machine ZD-7B-2(Elevated bottom plate) Economical type hydraulic double station heat press machine ZD-7B-2(Elevated bottom plate) Economical type hydraulic double station heat press machine ZD-7B-2(Elevated bottom plate) Economical type hydraulic double station heat press machine ZD-7B-2(Elevated bottom plate) Economical type hydraulic double station heat press machine ZD-7B-2(Elevated bottom plate)

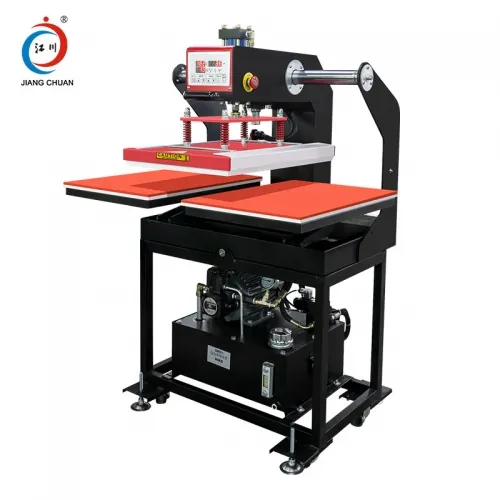

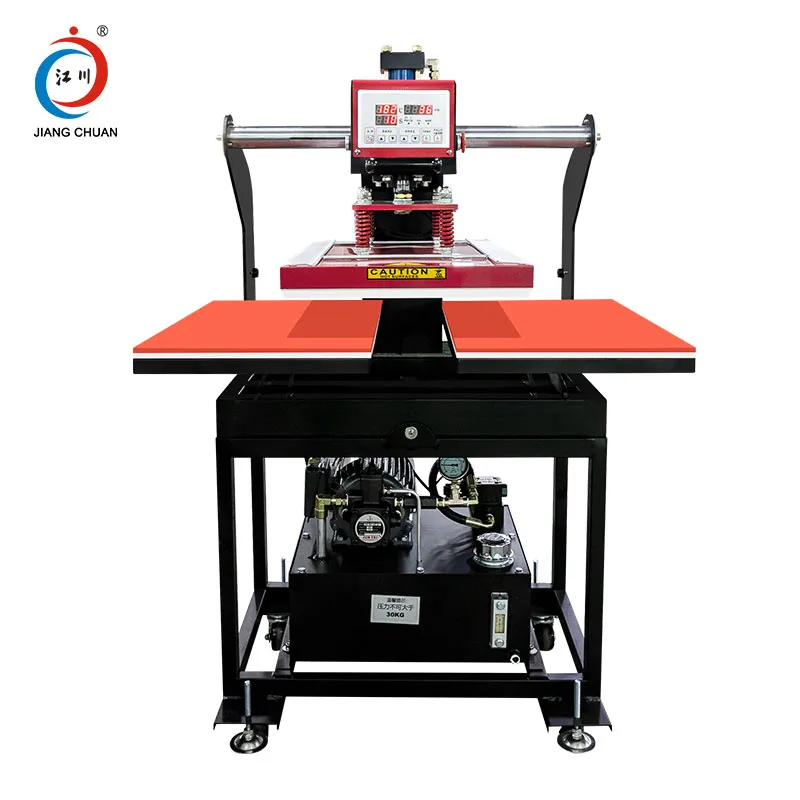

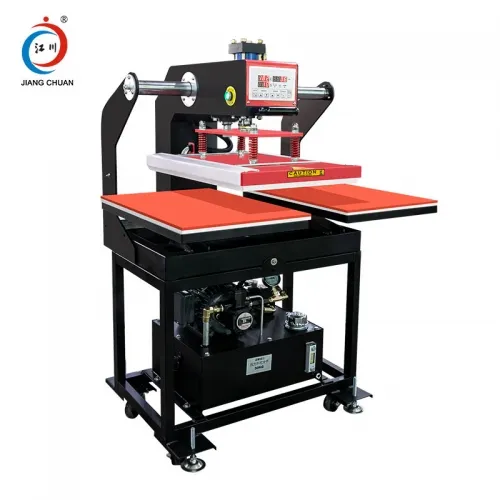

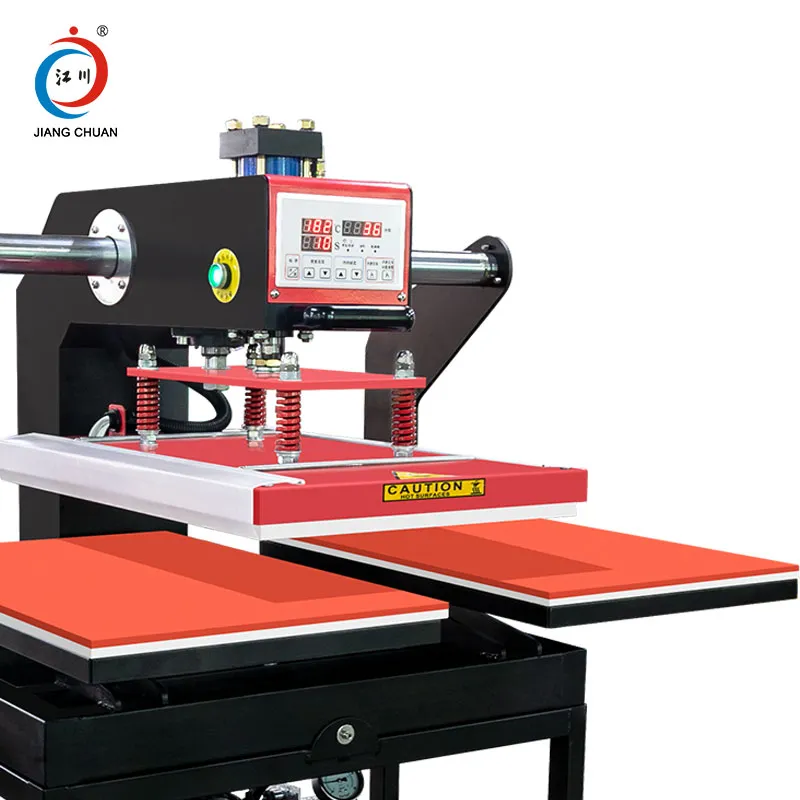

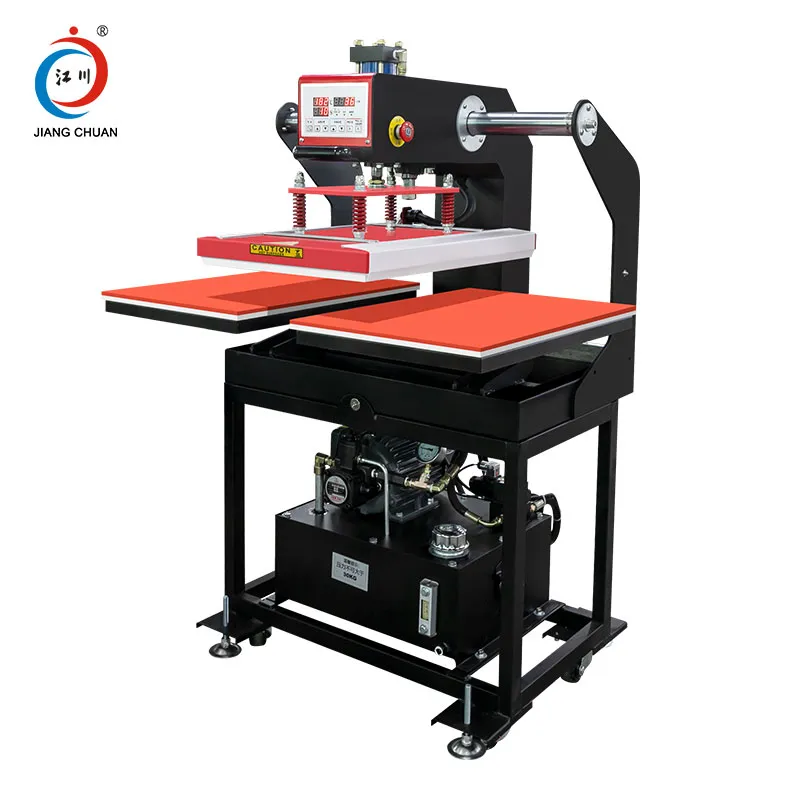

Economical type hydraulic double station heat press machine ZD-7B-2(Elevated bottom plate)

Item No.: ZD-7B-2 60X40cm
1.Advanced linear bearing sliding operation, with simple andconvenient prominentfeatures.
2.The heating plate moves and the bottom plate does not moveThere is a U-shaped groove specially designed for readymadeclothes.
3.The pressure can reach 30kg/cm2
INQUIRY
Description
Technicalcharacteristics
1.Advanced linear bearing sliding operation, with simple andconvenient prominentfeatures.
2.The heating plate moves and the bottom plate does not moveThere is a U-shaped groove specially designed for readymadeclothes.
3.The pressure can reach 30kg/cm².


Technical parameters
Printing size(CM2): 40x40 60x40
Voltage (V): 220/380 220/380
Power(KW): 4.0 4.3
Temperature range(C): 0-260 0-260
Time range(S): 0-999 0-999
Weight (KG): 230 243
Packing size(CM)LxWxH: 120x85x160 120x90x160
Tips: Product parameters and pictures are for reference only, please refer to the specific kind!
